AAP Medium Galvanised Steel Pipe
AAP Medium Galvanised Steel Pipe
AAP Medium Galvanised Steel Pipe
AAP Medium Galvanised Steel Pipe

1/2 in (15 mm) x 250 mm long Galvanised Pipe Piece | SPN15X25G

$5.92
$5.92
Inc. GST

Available

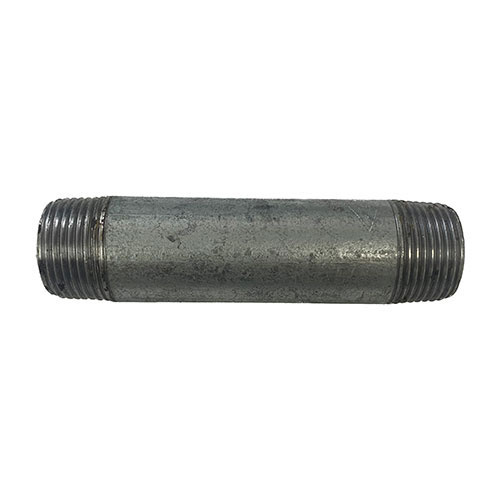

This AAP medium galvanised steel pipe piece has a taper BSP thread at both ends. It is supplied in 166 size and length combinations, from 1/8 in (6 mm) to 5 in (125 mm), in lengths from 40 mm to 1829 mm.

A pipe piece is a cut length of galvanised pipe with a taper BSP thread at both ends. AAP lists it as a medium pipe piece to BS 1387-85 (manufacturer-stated), and says it can supply other lengths to order, with minimum order quantities that may apply. A is the length, as lettered on the AAP drawing.

AAP does not state the galvanising process or coating thickness for this item, and does not state a pressure rating for it, so confirm the pressure and temperature for your application with AIMS before you order.

Where this product is used

  • Joining two female threaded fittings with a set length of pipe
  • Extending a galvanised threaded pipe run by a set length
  • Making up pipe runs between threaded fittings

Features

  • 166 size and length combinations, 1/8 in (6 mm) to 5 in (125 mm)
  • Galvanised medium pipe piece, BS 1387-85 (manufacturer-stated)
  • BSP taper thread at both ends
  • Other lengths to order

Key specifications

Specification Detail
Brand AAP
Product Medium galvanised steel pipe piece, taper thread both ends
Finish Galvanised (AAP does not state the process or coating thickness)
Material Steel
Thread BSP taper thread at both ends (as AAP describes)
Applicable standard (manufacturer-stated) BS 1387-85, medium (manufacturer-stated)
Lengths 40 mm to 1829 mm; other lengths to order, minimum order quantities may apply (manufacturer-stated)
Sizes 1/8 in (6 mm) to 5 in (125 mm) (166 variants)

Options and part numbers

Size Part number Length A (mm) Weight (kg)
1/8 in (6 mm) x 40 mm long SPN0640G 40 0.05
1/8 in (6 mm) x 60 mm long SPN0660G 60 0.05
1/8 in (6 mm) x 80 mm long SPN0680G 80 0.07
1/8 in (6 mm) x 100 mm long SPN0694G 100 0.08
1/4 in (8 mm) x 40 mm long SPN0840G 40 0.03
1/4 in (8 mm) x 50 mm long SPN0850G 50 0.04
1/4 in (8 mm) x 60 mm long SPN0860G 60 0.05
1/4 in (8 mm) x 75 mm long SPN0875G 75 0.06
1/4 in (8 mm) x 80 mm long SPN0880G 80 0.06
1/4 in (8 mm) x 100 mm long SPN0894G 100 0.08
1/4 in (8 mm) x 140 mm long SPN08140G 140 0.11
1/4 in (8 mm) x 150 mm long SPN0896G 150 0.12
3/8 in (10 mm) x 40 mm long SPN1040G 40 0.04
3/8 in (10 mm) x 50 mm long SPN1050G 50 0.05
3/8 in (10 mm) x 60 mm long SPN1060G 60 0.06
3/8 in (10 mm) x 75 mm long SPN1075G 75 0.08
3/8 in (10 mm) x 100 mm long SPN1094G 100 0.1
3/8 in (10 mm) x 140 mm long SPN10140G 140 0.14
3/8 in (10 mm) x 150 mm long SPN1096G 150 0.15
1/2 in (15 mm) x 40 mm long SPN1540G 40 0.04
1/2 in (15 mm) x 60 mm long SPN1560G 60 0.06
1/2 in (15 mm) x 80 mm long SPN1580G 80 0.08
1/2 in (15 mm) x 100 mm long SPN1594G 100 0.1
1/2 in (15 mm) x 120 mm long SPN15120G 120 0.12
1/2 in (15 mm) x 140 mm long SPN15140G 140 0.14
1/2 in (15 mm) x 150 mm long SPN1596G 150 0.15
1/2 in (15 mm) x 200 mm long SPN1598G 200 0.2
1/2 in (15 mm) x 250 mm long SPN15X25G 250 0.25
1/2 in (15 mm) x 300 mm long SPN15X30G 300 0.3
1/2 in (15 mm) x 350 mm long SPN15X35G 350 0.35
1/2 in (15 mm) x 400 mm long SPN15X40G 400 0.4
1/2 in (15 mm) x 450 mm long SPN15X45G 450 0.45
1/2 in (15 mm) x 500 mm long SPN15X50G 500 0.5
1/2 in (15 mm) x 600 mm long SPN15X60G 600 0.6
1/2 in (15 mm) x 750 mm long SPN15X75G 750 0.75
1/2 in (15 mm) x 900 mm long SPN15X90G 900 0.9
1/2 in (15 mm) x 1000 mm long SPN15X100G 1000 1
1/2 in (15 mm) x 1220 mm long SPN15X122G 1220 1.22
1/2 in (15 mm) x 1524 mm long SPN15X152G 1524 1.52
1/2 in (15 mm) x 1829 mm long SPN15X183G 1829 1.83
3/4 in (20 mm) x 60 mm long SPN2060G 60 0.08
3/4 in (20 mm) x 80 mm long SPN2080G 80 0.1
3/4 in (20 mm) x 100 mm long SPN2094G 100 0.13
3/4 in (20 mm) x 120 mm long SPN20120G 120 0.16
3/4 in (20 mm) x 140 mm long SPN20140G 140 0.18
3/4 in (20 mm) x 150 mm long SPN2096G 150 0.2
3/4 in (20 mm) x 200 mm long SPN2098G 200 0.26
3/4 in (20 mm) x 250 mm long SPN20X25G 250 0.33
3/4 in (20 mm) x 300 mm long SPN20X30G 300 0.39
3/4 in (20 mm) x 350 mm long SPN20X35G 350 0.46
3/4 in (20 mm) x 400 mm long SPN20X40G 400 0.52
3/4 in (20 mm) x 450 mm long SPN20X45G 450 0.59
3/4 in (20 mm) x 500 mm long SPN20X50G 500 0.65
3/4 in (20 mm) x 550 mm long SPN20X55G 550 0.72
3/4 in (20 mm) x 600 mm long SPN20X60G 600 0.78
3/4 in (20 mm) x 750 mm long SPN20X75G 750 0.98
3/4 in (20 mm) x 900 mm long SPN20X90G 900 1.17
3/4 in (20 mm) x 1000 mm long SPN20X100G 1000 1.3
3/4 in (20 mm) x 1220 mm long SPN20X122G 1220 1.59
3/4 in (20 mm) x 1524 mm long SPN20X152G 1524 1.98
3/4 in (20 mm) x 1829 mm long SPN20X183G 1829 2.38
1 in (25 mm) x 80 mm long SPN2580G 80 0.17
1 in (25 mm) x 100 mm long SPN2594G 100 0.21
1 in (25 mm) x 120 mm long SPN25120G 120 0.25
1 in (25 mm) x 140 mm long SPN25140G 140 0.29
1 in (25 mm) x 150 mm long SPN2596G 150 0.32
1 in (25 mm) x 200 mm long SPN2598G 200 0.42
1 in (25 mm) x 250 mm long SPN25X25G 250 0.53
1 in (25 mm) x 300 mm long SPN25X30G 300 0.63
1 in (25 mm) x 350 mm long SPN25X35G 350 0.74
1 in (25 mm) x 400 mm long SPN25X40G 400 0.84
1 in (25 mm) x 450 mm long SPN25X45G 450 0.95
1 in (25 mm) x 500 mm long SPN25X50G 500 1.05
1 in (25 mm) x 550 mm long SPN25X55G 550 1.16
1 in (25 mm) x 600 mm long SPN25X60G 600 1.26
1 in (25 mm) x 750 mm long SPN25X75G 750 1.58
1 in (25 mm) x 900 mm long SPN25X90G 900 1.89
1 in (25 mm) x 1000 mm long SPN25X100G 1000 2.1
1 in (25 mm) x 1220 mm long SPN25X122G 1220 2.56
1 in (25 mm) x 1524 mm long SPN25X152G 1524 3.2
1 in (25 mm) x 1829 mm long SPN25X183G 1829 3.84
1-1/4 in (32 mm) x 60 mm long SPN3260G 60 0.14
1-1/4 in (32 mm) x 80 mm long SPN3280G 80 0.19
1-1/4 in (32 mm) x 100 mm long SPN3294G 100 0.24
1-1/4 in (32 mm) x 140 mm long SPN32140G 140 0.34
1-1/4 in (32 mm) x 150 mm long SPN3296G 150 0.36
1-1/4 in (32 mm) x 200 mm long SPN3298G 200 0.48
1-1/4 in (32 mm) x 250 mm long SPN32X25G 250 0.6
1-1/4 in (32 mm) x 300 mm long SPN32X30G 300 0.72
1-1/4 in (32 mm) x 350 mm long SPN32X35G 350 0.84
1-1/4 in (32 mm) x 400 mm long SPN32X40G 400 0.96
1-1/4 in (32 mm) x 450 mm long SPN32X45G 450 1.08
1-1/4 in (32 mm) x 500 mm long SPN32X50G 500 1.2
1-1/4 in (32 mm) x 550 mm long SPN32X55G 550 1.32
1-1/4 in (32 mm) x 600 mm long SPN32X60G 600 1.44
1-1/4 in (32 mm) x 750 mm long SPN32X75G 750 1.8
1-1/4 in (32 mm) x 900 mm long SPN32X90G 900 2.16
1-1/4 in (32 mm) x 1220 mm long SPN32X122G 1220 2.93
1-1/2 in (40 mm) x 60 mm long SPN4060G 60 0.19
1-1/2 in (40 mm) x 80 mm long SPN4080G 80 0.25
1-1/2 in (40 mm) x 100 mm long SPN4094G 100 0.31
1-1/2 in (40 mm) x 120 mm long SPN40120G 120 0.37
1-1/2 in (40 mm) x 140 mm long SPN40140G 140 0.43
1-1/2 in (40 mm) x 150 mm long SPN4096G 150 0.47
1-1/2 in (40 mm) x 200 mm long SPN4098G 200 0.62
1-1/2 in (40 mm) x 250 mm long SPN40X25G 250 0.78
1-1/2 in (40 mm) x 300 mm long SPN40X30G 300 0.93
1-1/2 in (40 mm) x 350 mm long SPN40X35G 350 1.09
1-1/2 in (40 mm) x 400 mm long SPN40X40G 400 1.24
1-1/2 in (40 mm) x 450 mm long SPN40X45G 450 1.4
1-1/2 in (40 mm) x 500 mm long SPN40X50G 500 1.55
1-1/2 in (40 mm) x 600 mm long SPN40X60G 600 1.86
1-1/2 in (40 mm) x 750 mm long SPN40X75G 750 2.33
1-1/2 in (40 mm) x 900 mm long SPN40X90G 900 2.79
1-1/2 in (40 mm) x 1000 mm long SPN40X100G 1000 3.1
1-1/2 in (40 mm) x 1220 mm long SPN40X122G 1220 3.78
2 in (50 mm) x 100 mm long SPN5094G 100 0.41
2 in (50 mm) x 120 mm long SPN50120G 120 0.49
2 in (50 mm) x 140 mm long SPN50140G 140 0.57
2 in (50 mm) x 150 mm long SPN5096G 150 0.62
2 in (50 mm) x 200 mm long SPN5098G 200 0.82
2 in (50 mm) x 250 mm long SPN50X25G 250 1.03
2 in (50 mm) x 300 mm long SPN50X30G 300 1.23
2 in (50 mm) x 350 mm long SPN50X35G 350 1.44
2 in (50 mm) x 400 mm long SPN50X40G 400 1.64
2 in (50 mm) x 450 mm long SPN50X45G 450 1.85
2 in (50 mm) x 500 mm long SPN50X50G 500 2.05
2 in (50 mm) x 600 mm long SPN50X60G 600 2.46
2 in (50 mm) x 750 mm long SPN50X75G 750 3.08
2 in (50 mm) x 900 mm long SPN50X90G 900 3.69
2 in (50 mm) x 1000 mm long SPN50X100G 1000 4.1
2 in (50 mm) x 1220 mm long SPN50X122G 1220 5
2-1/2 in (65 mm) x 80 mm long SPN6580G 80 0.43
2-1/2 in (65 mm) x 100 mm long SPN6594G 100 0.54
2-1/2 in (65 mm) x 140 mm long SPN65140G 140 0.76
2-1/2 in (65 mm) x 150 mm long SPN6596G 150 0.81
2-1/2 in (65 mm) x 200 mm long SPN6598G 200 1.08
2-1/2 in (65 mm) x 250 mm long SPN65X25G 250 1.35
2-1/2 in (65 mm) x 300 mm long SPN65X30G 300 1.62
2-1/2 in (65 mm) x 450 mm long SPN65X45G 450 2.43
2-1/2 in (65 mm) x 600 mm long SPN65X60G 600 3.24
3 in (80 mm) x 80 mm long SPN8080G 80 -
3 in (80 mm) x 120 mm long SPN80120G 120 -
3 in (80 mm) x 140 mm long SPN80140G 140 -
3 in (80 mm) x 150 mm long SPN8096G 150 -
3 in (80 mm) x 200 mm long SPN8098G 200 -
3 in (80 mm) x 250 mm long SPN80X25G 250 -
3 in (80 mm) x 300 mm long SPN80X30G 300 -
3 in (80 mm) x 450 mm long SPN80X45G 450 -
3 in (80 mm) x 600 mm long SPN80X60G 600 -
3 in (80 mm) x 750 mm long SPN80X75G 750 -
3 in (80 mm) x 900 mm long SPN80X90G 900 -
3 in (80 mm) x 1000 mm long SPN80X100G 1000 -
4 in (100 mm) x 100 mm long SPN9494G 100 1.03
4 in (100 mm) x 120 mm long SPN94120G 120 1.23
4 in (100 mm) x 140 mm long SPN94140G 140 1.44
4 in (100 mm) x 150 mm long SPN9496G 150 1.54
4 in (100 mm) x 200 mm long SPN9498G 200 2.05
4 in (100 mm) x 250 mm long SPN94X25G 250 2.57
4 in (100 mm) x 300 mm long SPN94X30G 300 3.08
4 in (100 mm) x 450 mm long SPN94X45G 450 4.62
4 in (100 mm) x 600 mm long SPN94X60G 600 6.16
4 in (100 mm) x 750 mm long SPN94X75G 750 7.7
4 in (100 mm) x 900 mm long SPN94X90G 900 9.24
4 in (100 mm) x 1000 mm long SPN94X100G 1000 10.27
5 in (125 mm) x 600 mm long SPN95X60G 600 6.8

A is the overall length, as lettered on the AAP drawing, in millimetres. Weights are approximate, in kilograms per piece. A dash means AIMS is not showing that figure while it is checked with AAP.

Selecting the right option

Choose the size to match your pipework. These fittings are BSP threaded, so check that your pipe or fitting is BSP and not NPT before you order. Each size is listed in several lengths, so check the length (A) as well as the thread size. AAP also lists a length (SPN95X30G) in this range which AIMS does not currently list, and can supply other lengths to order. Ask if you need one.

Related products

See also AAP Galvanised Malleable Iron Hexagon Nipple, AAP Galvanised Malleable Iron Socket, AAP Galvanised Malleable Iron 90 Degree Bend, Female-Female and AAP Galvanised Malleable Iron 90 Degree Elbow, Female-Female.
