4 in Butterfly Valve Gear Operator | VWG94N
Available

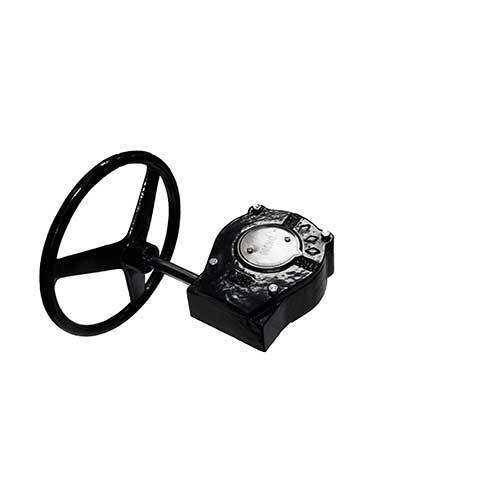

This AAP gear operator is a manual gear operator for AAP butterfly valves, listed in the catalogue for valve sizes 4 in (100 mm) to 12 in (300 mm). It is supplied in 5 part numbers.
A gear operator turns the valve through a gearbox instead of a lever, so the disc position can be set more precisely. AAP says it is for precise regulation of a butterfly valve where flow control is critical, because levers and notch plates only have 10 position settings (manufacturer-stated).
AAP lists the gear operator by valve size and gives the mounting dimensions D1 (70 mm or 102 mm), F, h and the bolt holes (4-M8 or 4-M10). D1 matches dimension E (70 mm or 102 mm) on the matching size of AAP wafer and lugged butterfly valve in this catalogue, so check it against the valve you are fitting. AAP does not state the operator material or its rated torque in the catalogue.
AAP supplies the 14 in to 24 in butterfly valves with a gear operator as standard, so this product is for the lever valves in the 2 in to 12 in sizes.
Where this product is used
- Fine flow regulation on AAP butterfly valves
- Water and wastewater and HVAC pipework
- Valves that are hard to move with a lever
- Process lines where flow control is critical
Features
- 5 part numbers for valve sizes 4 in to 12 in
- Gear operated alternative to the lever
- Mounting D1 of 70 mm or 102 mm with M8 or M10 bolt holes (manufacturer-stated)
- Approx. weight 2.5 kg to 8 kg

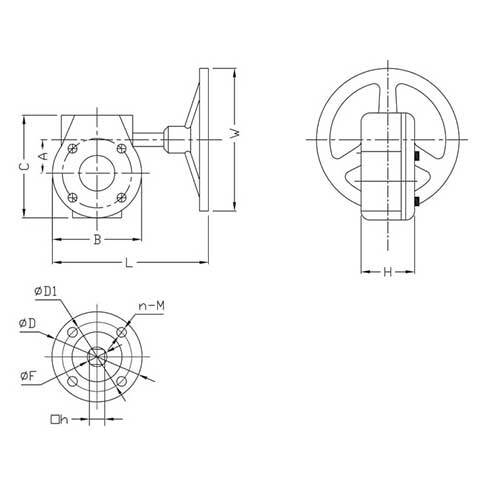

Mounting dimensions
| Valve size | Part number | D | D1 | F | h | Bolt holes |
|---|---|---|---|---|---|---|
| 4 in (100 mm) | VWG94N | 90 | 70 | 18.1 | 14 | 4-M8 |
| 5 and 6 in (125 and 150 mm) | VWG95/96N | 90 | 70 | 22.1 | 17 | 4-M8 |
| 8 in (200 mm) | VWG98N | 125 | 102 | 22.1 | 17 | 4-M10 |
| 10 in (250 mm) | VWGX25N | 125 | 102 | 28.2 | 22 | 4-M10 |
| 12 in (300 mm) | VWGX30N | 125 | 102 | 28.2 | 22 | 4-M10 |
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Butterfly valve gear operator |
| Valve sizes | 4 in (100 mm) to 12 in (300 mm) |
| Mounting D1 | 70 mm or 102 mm |
| Bolt holes (n-M) | 4-M8 or 4-M10 |
| Parts | 5 part numbers |
Options and part numbers
| Size | Part number | A | B | C | H | L | W | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 4 in (100 mm) | VWG94N | 45 | 106 | 127 | 65 | 205 | 146 | 2.5 |
| 5 and 6 in (125 and 150 mm) | VWG95/96N | 45 | 106 | 127 | 65 | 205 | 146 | 2.5 |
| 8 in (200 mm) | VWG98N | 63 | 145 | 170 | 69 | 295 | 287 | 6.5 |
| 10 in (250 mm) | VWGX25N | 63 | 145 | 170 | 69 | 295 | 287 | 6.5 |
| 12 in (300 mm) | VWGX30N | 80 | 156 | 190 | 71 | 291 | 287 | 8 |
Dimensions are in mm and use the letters in AAP's catalogue, which does not define them. AAP also lists a 2 in to 3 in operator (VWG50/80N). Ask AIMS if you need it.
Selecting the right option
Match the part number to the valve size, and check dimension D1 and the bolt holes against the valve top flange before you order. AAP also lists a 2 in to 3 in operator (VWG50/80N); ask AIMS if you need it.
Related products
See also AAP Wafer Butterfly Valve, NBR Seat, Stainless Steel Disc, AAP Wafer Butterfly Valve, EPDM Seat, Stainless Steel Disc, AAP Lugged Butterfly Valve, NBR Seat, Stainless Steel Disc and AAP Lugged Butterfly Valve, EPDM Seat, Stainless Steel Disc.
