1 x 1/2 in (25 x 15 mm) Buttweld Eccentric Reducer, Std | WER2515
Available
This AAP buttweld eccentric reducer is made from carbon steel to ASTM A234 WPB, ANSI B16.9 (manufacturer-stated). It is supplied in 25 sizes, 1 x 1/2 in (25 x 15 mm) to 12 x 10 in (300 x 250 mm).
An eccentric reducer steps a pipe run from one size down to a smaller size, with the two ends offset so that one side of the pipe stays flat through the change. Sizes are listed as the larger size first, then the smaller.
AAP describes its buttweld range as carbon alloy steel to ASTM A234 for use in various piping systems. AAP lists these advantages of buttweld (manufacturer-stated): a welded fitting is permanently leak proof, the continuous metal between pipe and fitting adds strength, the smoother inner surface and gradual direction changes reduce pressure loss, turbulence, corrosion and abrasion, and a welded system uses a minimum of space.
Where this product is used
- Pipework where a welded, permanently leak proof joint is wanted, as AAP describes for buttweld
- Reducing a welded pipe run from a larger size to a smaller one
- Runs where one side of the pipe must stay level through the size change
Features
- 25 sizes, 1 x 1/2 in (25 x 15 mm) to 12 x 10 in (300 x 250 mm)
- Butt weld ends, ASTM A234 WPB, ANSI B16.9 (manufacturer-stated)
- Wall thickness listed for every size
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Buttweld eccentric reducer |
| Weight class (manufacturer-stated) | Standard weight (Std) |
| Standards (manufacturer-stated) | ASTM A234 WPB, ANSI B16.9 |
| Material | Carbon steel (AAP: carbon alloy steel to ASTM A234) |
| Ends | Butt weld ends |
| Weld end preparation (manufacturer-stated) | To ANSI B16.25: wall under 5 mm cut square or slightly chamfered; 5 mm to 22 mm plain bevel at 37.5 degrees plus or minus 2.5 degrees; over 22 mm compound bevel |
| Sizes | 1 x 1/2 in (25 x 15 mm) to 12 x 10 in (300 x 250 mm) (25 sizes) |
Options and part numbers
| Size | Part number | Larger OD A1 (mm) | Larger ID A2 (mm) | Smaller OD B1 (mm) | Smaller ID B2 (mm) | Length C (mm) | Wall (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 1 x 1/2 in (25 x 15 mm) | WER2515 | 33.7 | 25.9 | 21.3 | 15.7 | 50.8 | 3.4 | 0.1 |
| 1 x 3/4 in (25 x 20 mm) | WER2520 | 33.7 | 25.9 | 26.7 | 20.9 | 50.8 | 3.4 | 0.1 |
| 1-1/4 x 1 in (32 x 25 mm) | WER3225 | 42.2 | 35 | 33.7 | 25.9 | 50.8 | 3.6 | 0.2 |
| 1-1/2 x 1/2 in (40 x 15 mm) | WER4015 | 48.3 | 40.9 | 21.3 | 15.7 | 63.5 | 3.7 | 0.3 |
| 1-1/2 x 1-1/4 in (40 x 32 mm) | WER4032 | 48.3 | 40.9 | 42.2 | 35 | 63.5 | 3.7 | 0.3 |
| 2 x 1 in (50 x 25 mm) | WER5025 | 60.3 | 52.5 | 33.7 | 25.9 | 76.2 | 3.9 | 0.4 |
| 2 x 1-1/2 in (50 x 40 mm) | WER5040 | 60.3 | 52.5 | 48.3 | 40.9 | 76.2 | 3.9 | 0.7 |
| 2-1/2 x 1-1/2 in (65 x 40 mm) | WER6540 | 73 | 62.6 | 48.3 | 40.9 | 88.9 | 5.2 | 0.6 |
| 2-1/2 x 2 in (65 x 50 mm) | WER6550 | 73 | 62.6 | 60.3 | 52.5 | 88.9 | 5.2 | 0.6 |
| 3 x 2 in (80 x 50 mm) | WER8050 | 88.9 | 77.9 | 60.3 | 52.5 | 88.9 | 5.5 | 0.9 |
| 3 x 2-1/2 in (80 x 65 mm) | WER8065 | 88.9 | 77.9 | 73 | 62.6 | 88.9 | 5.5 | 1 |
| 4 x 2 in (100 x 50 mm) | WER9450 | 114.3 | 102.3 | 60.3 | 52.5 | 101.6 | 6.1 | 1.5 |
| 4 x 2-1/2 in (100 x 65 mm) | WER9465 | 114.3 | 102.3 | 73 | 62.6 | 101.6 | 6.1 | 1.6 |
| 4 x 3 in (100 x 80 mm) | WER9480 | 114.3 | 102.3 | 88.9 | 76.7 | 101.6 | 6.1 | 1.6 |
| 5 x 4 in (125 x 100 mm) | WER9594 | 141.3 | 128.1 | 114.3 | 102.3 | 127 | 6.6 | 2.6 |
| 6 x 3 in (150 x 80 mm) | WER9680 | 168.3 | 154.1 | 88.9 | 77.9 | 139.7 | 7.1 | 3.6 |
| 6 x 4 in (150 x 100 mm) | WER9694 | 168.3 | 154.1 | 114.3 | 102.3 | 139.7 | 7.1 | 3.5 |
| 6 x 5 in (150 x 125 mm) | WER9695 | 168.3 | 154.1 | 141.3 | 128.1 | 139.7 | 7.1 | 3.7 |
| 8 x 4 in (200 x 100 mm) | WER9894 | 219.1 | 202.7 | 114.3 | 102.3 | 152.4 | 8.2 | 6.3 |
| 8 x 5 in (200 x 125 mm) | WER9895 | 219.1 | 202.7 | 141.3 | 128.1 | 152.4 | 8.2 | 5.9 |
| 8 x 6 in (200 x 150 mm) | WER9896 | 219.1 | 202.7 | 168.3 | 154.1 | 152.4 | 8.2 | 5.9 |
| 10 x 6 in (250 x 150 mm) | WERX2596 | 273.1 | 254.5 | 168.3 | 154.1 | 177.8 | 9.3 | 10 |
| 10 x 8 in (250 x 200 mm) | WERX2598 | 273.1 | 254.5 | 219.1 | 202.7 | 177.8 | 9.3 | 10.7 |
| 12 x 8 in (300 x 200 mm) | WERX3098 | 323.9 | 304.9 | 219.1 | 202.7 | 203.2 | 9.5 | 15.3 |
| 12 x 10 in (300 x 250 mm) | WERX30X25 | 323.9 | 304.9 | 273.1 | 254.5 | 203.2 | 9.5 | 15.7 |

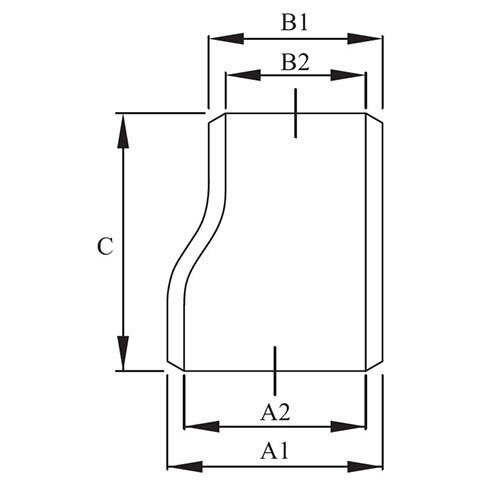

Dimensions are in millimetres, as lettered on the AAP drawing: A1 and A2 are the outside and inside diameters of the larger end, B1 and B2 of the smaller end, and C is the overall length.
Selecting the right option
Match the wall thickness to the pipe you are welding to. AAP does not publish a pressure rating for the fittings themselves.
Related products
See also AAP Buttweld Concentric Reducer, Std, AAP Buttweld Reducing Tee, Std, AAP Buttweld Equal Tee, Std and AAP Buttweld Cap, Std.
