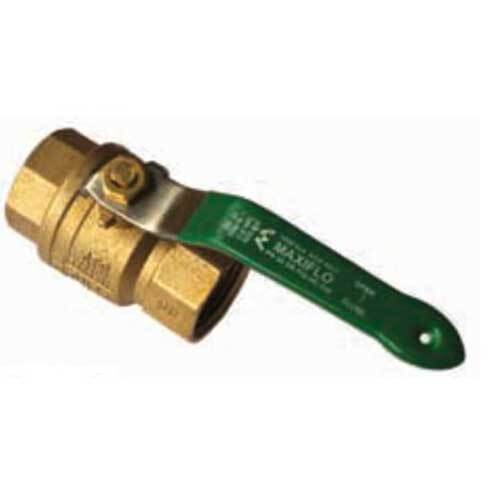

DR Brass Ball Valves - Maxiflo

  • Due to the serious threat that dezincification exposes to our water industry, it is essential today that DEZINCIFICATION RESISTANT (DR) valves are used in the appropriate applications. This includes DR valves on all potable water services including water tanks.
  • Offers many configurations of DR maxiflo ball valves, including male/female threaded valves with optional T/Handle and extension spindle.
  • Apart from potable water, it is also approved for the use of low-pressure gas services. It can also be used on oils, chemicals, and hydrocarbons.


Thread AS1722.1
Max Working Temperature 150°C (Gas = 60°C)
Cold Working Pressure 2500kPa (Gas = 1050kPa)


Material Lists
Body DR Brass
Seat Retainer DR Brass
Seat P.T.F.E.
Ball DR Brass (Chromium Plated)
Stem DR Brass
Gland DR Brass
Packing Viton (Double O-Ring)
Lever Stainless Steel (Plastic Coated)
Lever Retaining Nut Brass
T-Handle (Optional) DR Brass


About Ball Valves:

  • A ball valve is a valve with a spherical ball with an orifice straight through mounted between teflon seats in either a screwed or flanged body in various materials.
  • When the orifice is in line with both ends of the valve flow will occur.
  • When the valve is closed the orifice is perpendicular to the ends of the valve.
  • The lever/handle will be in line with the orifice position, an indication of the valve position.


  • AIMS SKU A0080374
  • Brand AAP
  • Model Number VBBD08

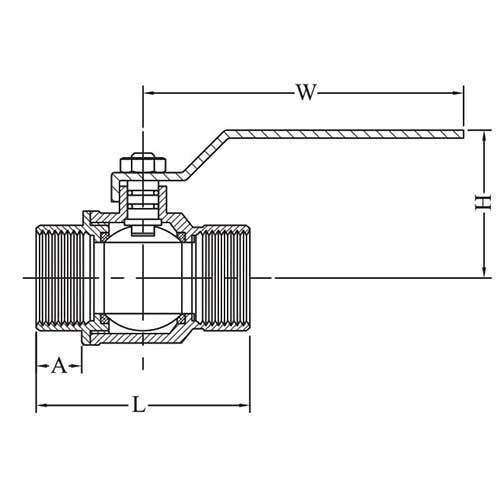

  • Valve Handle Length (W) 85
  • Thread Length (A) 12
  • Pipe Size (inch) 1/4
  • Height of handle from Valve (H) 35
  • Approx. Kg/pc 0.16
  • Valve Length (l) 49.5
  • Pipe Size (mm) 8
  • Type Brass Ball Valve
  • Certification/Approval Watermark
  • Lever Finish Stainless Steel
  • Fitting Material Finish DR Brass
SKU: A0080374

AAP 8mm, 1/4" Dr Brass Ball Valve SS Lever AGA Watermark VBBD08

AAP Brass Ball Valve

RRP $26.32
SAVE $13.16 (50%)
