Description

AAP Cross Over Nipple

(High-Pressure Fittings)

  • Rating: Threaded End – 3000lbs
  • Standards: BS 3799 (1974) – Steel Pipe Fittings, screwed and socket-welding for the petroleum industry
  • Threads:
    • AS1722.1/ ISO 7 - British Standard Taper Threads (BSPT)
    • ANSI B1.20.1 – American National Standard Taper Thread (NPT)
  • Marking:
    • Carbon and Alloy Steel – Market by Stamping
    • 3/8" and under: Brand only
    • 1/2" to 4": marked brand, material, heat number, B16 (to state that it’s an ANSI B16 product), pressure and size
  • finishing: Available in Black, Hot-Dipped, Stainless Steel

Specifications

  • AIMS SKU A0079505
  • Brand AAP
  • Model Number PN15BN

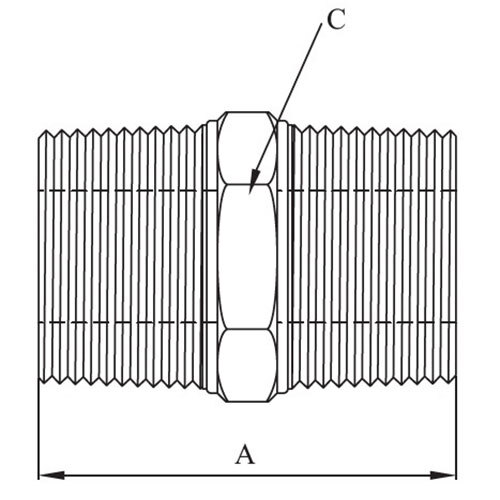

  • Length (A) 48
  • Pipe Size (inch) 1/2
  • Pipe Size (mm) 15
  • Approx. Kg/pc 0.09
  • C 22
  • Type Cross Over Nipple
  • Fitting Thread Form BSPT, NPT
SKU: A0079505

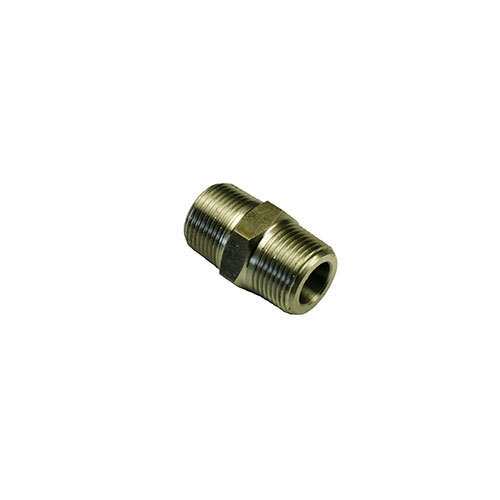

AAP 1/2", 15mm High Pressure Cross Over Nipple PN15BN

AAP - Cross Over Nipple

$5.69
RRP $10.62
SAVE $4.93 (46%)
