Description

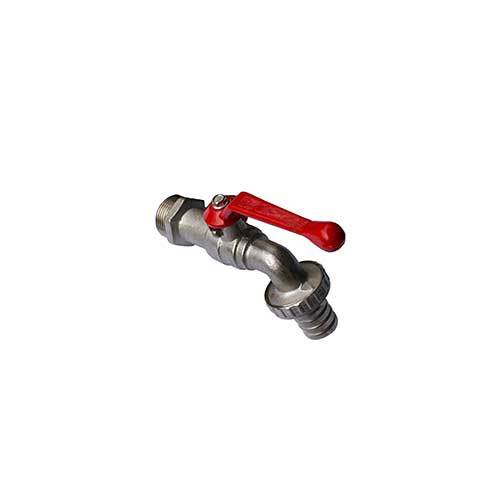

AAP Brass Bib Cock w/ SS Locking Lever

  • For flow to medium gas applications. Can also be used forificertain chemicals and oils



Specifications
Thread AS1722.1
Max Working Temperature 60°C
Cold Working Pressure 2500kPa




MATERIAL LISTS

PART

MATERIAL

Body

Brass (Nickel Plated)

Seat Retainer

Brass (Nickel Plated)

Seat

P.T.F.E.

Ball

Brass (Chromium plated)

Stem

Brass

Gland

Brass

Packing

Viton (Double O-Ring)

Lever

Stainless Steel (Plastic Coated)

Lever Retaining Nut

Brass (Nickel Plated)
T-Handle (Optional) DR Brass



About Ball Valves:

  • A ball valve is a valve with a spherical ball with an orifice straight through mounted between teflon seats in either a screwed or flanged body in various materials.
  • When the orifice is in line with both ends of the valve flow will occur.
  • When the valve is closed the orifice is perpendicular to the ends of the valve.
  • The lever/handle will be in line with the orificeposition, an indication of the valve position.

Specifications

  • AIMS SKU A0080297
  • Brand AAP
  • Model Number VBC15

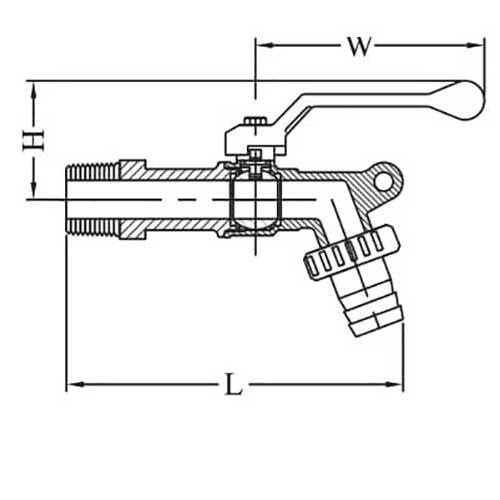

  • Valve Length (l) 135
  • Pipe Size (inch) 1/2
  • Valve Handle Length (W) 85
  • Approx. Kg/pc 0.16
  • Height of handle from Valve (H) 40
  • Pipe Size (mm) 15
  • Type Bras Bib Cock
  • Lever Finish Stainless Steel
  • Fitting Material Finish Brass
SKU: A0080297 On Sale

AAP 15mm, 1/2" Brass Bib Cock w/ Stainless Steel Locking Lever VBC15

AAP Bib Cock

$9.44
$11.11
