Description

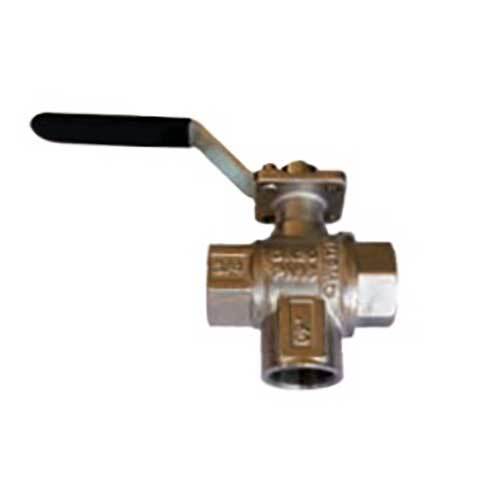

AAP Brass Ball Valve 3-way T-Port PN10

  • For flow to medium gas applications. Can also be used forificertain chemicals and oils



Specifications
Thread AS1722.1
Max Working Temperature 60°C
Cold Working Pressure 2500kPa




MATERIAL LISTS

PART

MATERIAL

Body

Brass (Nickel Plated)

Seat Retainer

Brass (Nickel Plated)

Seat

P.T.F.E.

Ball

Brass (Chromium plated)

Stem

Brass

Gland

Brass

Packing

Viton (Double O-Ring)

Lever

Stainless Steel (Plastic Coated)

Lever Retaining Nut

Brass (Nickel Plated)
T-Handle (Optional) DR Brass



About Ball Valves:

  • A ball valve is a valve with a spherical ball with an orifice straight through mounted between teflon seats in either a screwed or flanged body in various materials.
  • When the orifice is in line with both ends of the valve flow will occur.
  • When the valve is closed the orifice is perpendicular to the ends of the valve.
  • The lever/handle will be in line with the orificeposition, an indication of the valve position.

Specifications

  • AIMS SKU A0080273
  • Brand AAP
  • Model Number VBBTW08

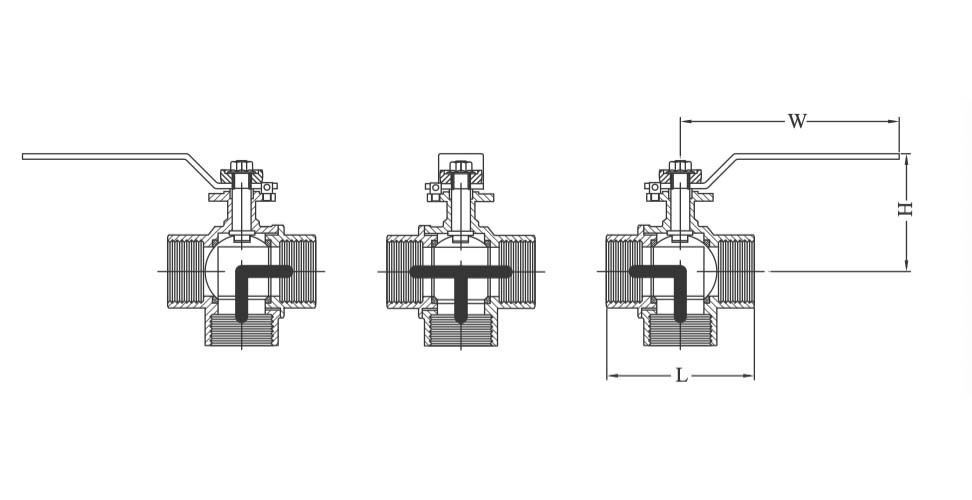

  • Valve Length (l) 52
  • Pipe Size (inch) 1/4
  • Valve Handle Length (W) 98
  • Approx. Kg/pc 0.25
  • Height of handle from Valve (H) 42
  • Pipe Size (mm) 08
  • Type Brass Ball Valve, Direct Mount
  • Fitting Material Finish Brass
SKU: A0080273 On Sale

AAP 1/4" Brass Ball Valve 3-way T-Port PN10 Direct Mounting VBBTW08

AAP Brass Ball Valve 3-way T-Port PN10

$59.57
$70.08
