Blind Flanges


  • ANSI B16.5 - Pipe Flanges and Flanged Fittings (American)
  • APPLICATION: Water Supply, Oil, Gas, Petrochemical, Irrigation, Fire Services, General Industry, Construction.
  • MARKING: All Flanges when possible will display a heat number, size, table, grade and dimensional standard

 About Forged Steel Flanges:

  • Forged Steel flanges are commonly used and specified in the Oil, Gas, Petrochemical, and mining sectors, where pressure, temperature and safety considerations often specify the ANSI B16.5, ASME B16.47, or BS4504 standards.
  • The manufacturing method involves the hot forging of suitable steels prior to ?nal machining


  • AIMS SKU A0078912
  • Brand AAP
  • Model Number P3FB15
  • Drilling Bolt Size 1/2

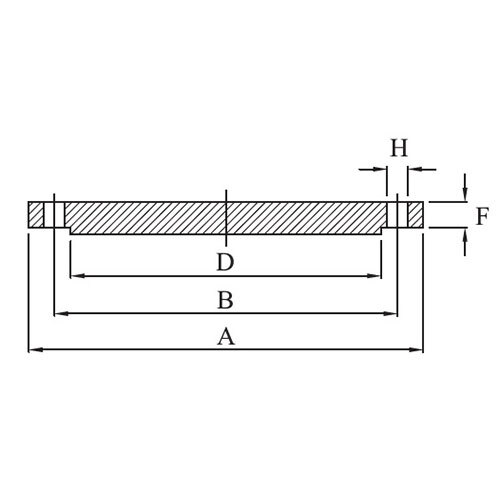

  • Drilling Bolt Circle Diameter (B) 66.6
  • Flange Thickness (F) 14.3
  • Pipe Size (inch) 1/2"
  • Drilling No. Of Holes 4
  • Flange Raised Faced Thickness 1.6
  • Flange Outside Diameter (A) 95.3
  • Drilling Holes Diameter (H) 16
  • Flange Raised Face Diameter (D) 35
  • Approx. Weight kg/pc 0.9
  • Type Blind Flange
  • Fitting Schedule/class C300
SKU: A0078912

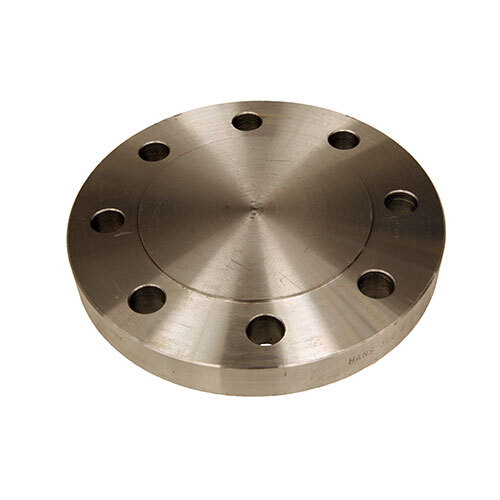

AAP 1/2" Blind Flange ANSI B16.5 C300 P3FB15

AAP - Blind flange

RRP $22.40
SAVE $12.00 (54%)
