AAP Flanged Ball Valve

Applications: - Refinery, Chemical, Petrochemical, Pharmaceutical Power

Specifications

Flange Dimensions ASME B16.5
Face to Face Dimensions ASME B16.10
Max Working Temperature 200°C
Cold Working Pressure 1960KPa

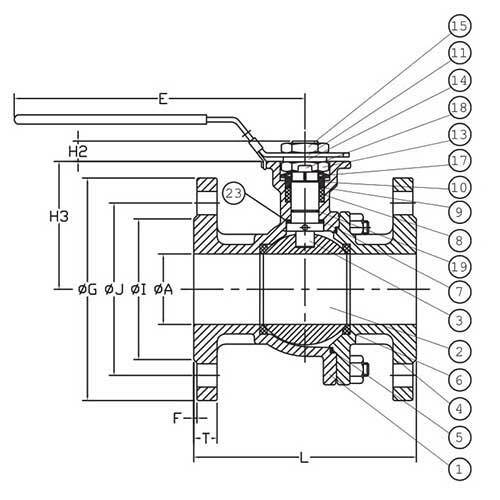

Material List

NO. PART MATERIAL
1 Body ASTM A216 WCB
2 Ball ASTM A351 CF8M(316)
3 Stem SS316
4 End Cap ASTM A216 WCB
5 Body Seal Graphite
6 Seat RTFE
7 Thrust Washer PTFE
8 Stem Packing Graphite
9 Thrust Washer RTFE
10 Gland SS304
11 Handle SS304
12 Handle Cover Plastic
13 Stem Nut SS304
14 Handle Washer SS304
15* Handle Nut SS304
16* Locking Pad SS304
17 Belleville Washer SS304
18 Stop Washer SS304
19 Stem O-Ring VITON
20 Stop SS304
21 Stud ASTM A193 Gr. B8
22 Nut ASTM A194 Gr. 8
23 Thrust Washer Graphite
24** Triangle Stopper SS304
25** Bolt SS304
26** Handle Adapter SS304

*Up to 65mm valves **From 80mm valves

About Ball Valves:

  • A ball valve is a valve with a spherical ball with an orifice straight through mounted between teflon seats in either a screwed or flanged body in various materials.
  • When the orifice is in line with both ends of the valve flow will occur.
  • When the valve is closed the orifice is perpendicular to the ends of the valve.
  • The lever/handle will be in line with the orifice position, an indication of the valve position.

Specifications

  • AIMS SKU A0078662
  • Brand AAP
  • Model Number VBS150FS25
  • J 79.2
  • Ball Diameter 25
  • Height of handle from Valve (H3) 64
  • F 1.6
  • Pipe Size (inch) 1
  • Hole Diameter 16
  • Z-4 7
  • T 14.3
  • Handle washer to adapter (H2) 11.4
  • G 108
  • Valve Length (l) 127
  • Approx. Kg/pc 3.8
  • Number of holes 4
  • K1 36
  • I 51
  • Handle washer to adapter (H1) -
  • Valve Handle Length (E) 136
  • C 11
  • Pipe Size (mm) 25
  • Z1-4 6
  • K 50
  • Type Flanged Ball Valve
  • Fitting Schedule/class ANSI 150
  • Fitting Material Finish Carbon Steel
SKU: A0078662

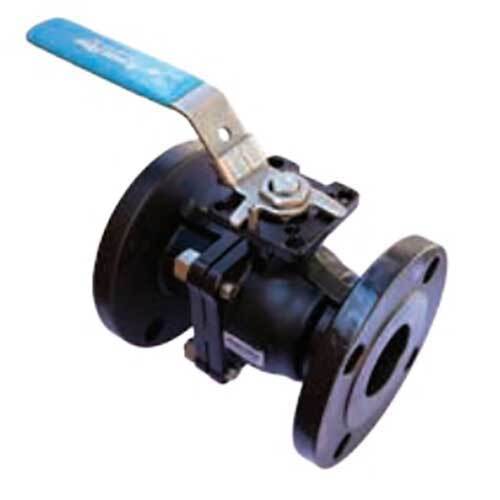

AAP 25mm, 1" Ball Valve Flanged Carbon Steel ANSI 150 VBS150FS25
