Description

AAP Ball Valve Fire Safe

Applications: W.O.G.

Specifications

Thread (NPT) ANSI B1.20.1
Cold Working Pressure 2000 PSI (13'789 kPa)
Max Working Temperature 200°C
Mounting Pad * ISO 5211
Inspection and Testing API 598
Face to Face/End to End ASME B16.10

* 1/4" - 1/2" Not Direct Mounting

Materials

PART STAINLESS STEEL
Body ASTM A351 CF8M
End Cap ASTM A351 CF8M
Ball ASTM A351 CF8M/316
Seat PTFE
Gasket PTFE
Thrust Washer PTFE
Stem Packing Graphite
Gland AISI 304
Belleville Washer AISI 304
Stem ASTM A276 316
Packing Nut AISI 304
Spring Washer AISI 304
Handle Nut AISI 304
Bolt ASTM A193 B8
Handle AISI 304
Handle Grip Vinil Plastisol
Lock Saddle AISI 304
O-Ring Viton
Stopper Nut AISI 304
Anti-Static Device AISI 304

About Ball Valves:

  • A ball valve is a valve with a spherical ball with an orifice straight through mounted between teflon seats in either a screwed or flanged body in various materials.
  • When the orifice is in line with both ends of the valve flow will occur.
  • When the valve is closed the orifice is perpendicular to the ends of the valve.
  • The lever/handle will be in line with the orifice position, an indication of the valve position.

Specifications

  • AIMS SKU A0078700
  • Brand AAP
  • Model Number VBSS800FS08
  • E 9
  • Valve Handle Length (W) 140
  • F 8
  • Pipe Size (inch) 1/4
  • Iso 5211 F04
  • Height of handle from Valve (H) 70
  • Approx. Kg/pc 1.1
  • G 37.5
  • Valve Diameter (D) 11
  • Valve Length (l) 65
  • Pipe Size (mm) 8
  • Type Ball Valve
  • Fitting Schedule/class Class 800
  • Fitting Material Finish Stainless Steel
SKU: A0078700 On Sale

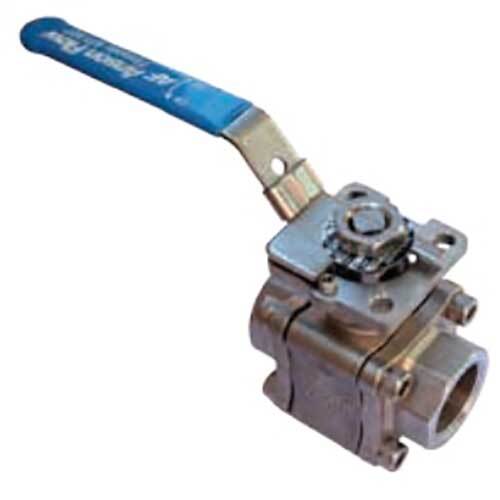

AAP 1/4" Ball Valve 3-PCE Class 800 Fire Safe 316 SS VBSS800FS08

AAP Ball Valve Fire Safe

$111.29
$130.93
