Description

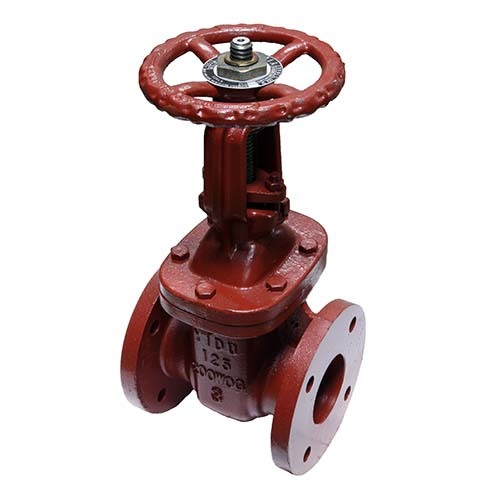

AAP Cast Iron Gate Valve

Applications

  • Water, sewage, and neutral liquid applications

Specifications

  • Flange - AS2129
  • Cold Working Pressure - 1379kPa
  • Max Working Temperature - 200°C

Material List

  • Body - Cast Iron
  • Seat Ring - Cast Bronze
  • Wedge Face Ring - Cast Bronze
  • Wedge - Cast Iron
  • Wedge Nut - Cast Bronze
  • Stem - Brass
  • Body Gasket - Graphite/Steel
  • Bonnet - Cast Iron
  • Gland Follower Bolt - Steel
  • Stufing Box Gasket - Teflon
  • Stuffing Box - Cast Iron
  • Packing - Teflon
  • Gland Follower - Ductile Iron
  • Yoke Bushing - Cast Brass
  • Handwheel - Cast Iron

Specifications

  • AIMS SKU A0081080
  • Brand AAP
  • Model Number VCIGRS94D
  • Type Cast Iron Gate Valve
  • Pipe Size (inch) 4
  • Pipe Size (mm) 100
  • Fitting Material Finish Cast Iron
  • Approx. Kg/pc 39

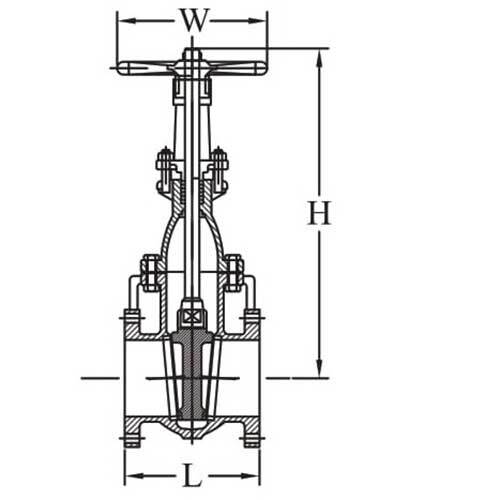

  • Height of handle from Valve (H) 395
  • Valve Handle Length (W) 250
  • Number of holes 22
  • Hole Diameter 8
  • Valve Length 241.3
SKU: A0081080

AAP 4" Cast Iron Flanged Gate Valve-Rising Stem Table-D VCIGRS94D

AAP Cast Iron Gate Valve

$829.24
RRP $1,382.06
SAVE $552.82 (40%)
