Description

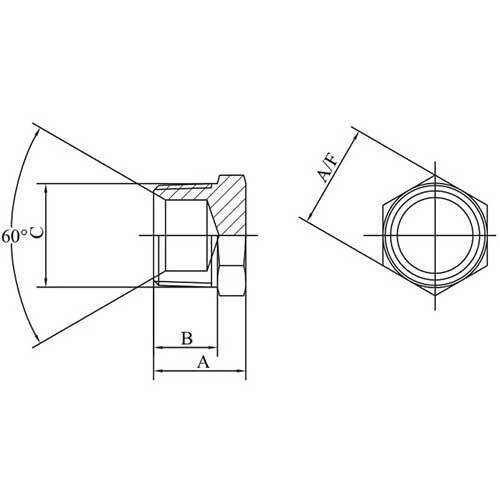

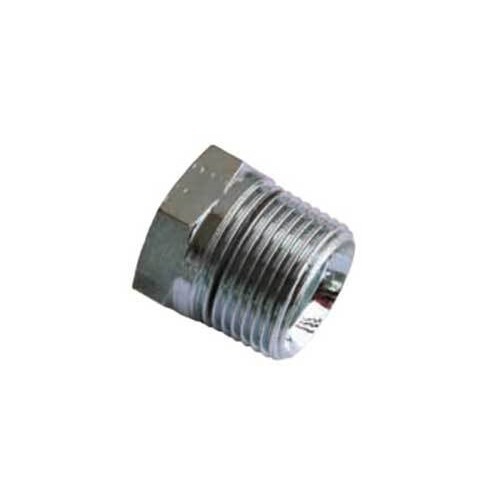

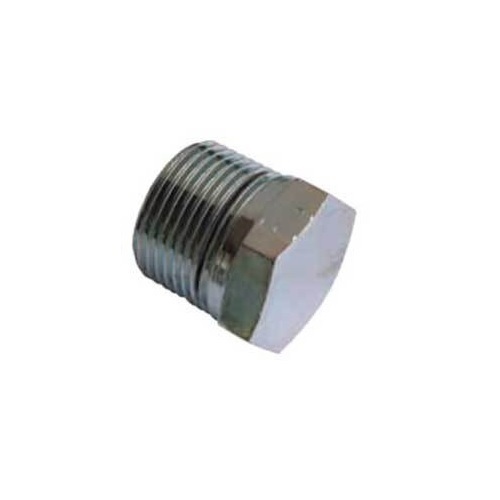

AAP Hydraulic Plug BSPT

Hydraulic Fittings are designed and manufactured to withstand much greater pressures than those experienced in general piping systems.
Hydraulic Fittings come complete with a Zinc Chromium finish to increase corrosion resistance.
AAP stocks a variety of combinations using the following threads British Standard Pipe (BSP) - AS1722, ISO 7, IS0228

British Standard Threads (BSP)
				Taper Extefinal Thread		Parallel Extefinal Thread		Taper & Parallel Intefinal Thread
Nominal Tube Size	Dash Size	Nominal Thread Size	Pitch	Max Working Pressure (BAR)	Max Thread OD	Max Working Pressure (BAR)	Max Thread OD	Max Working Pressure (BAR)	Max Thread OD
1/8	2	1/8	28	420	9.72	350	9.72	400	8.59
1/4	4	1/4	19	350	13.16	350	13.16	400	11.46
3/8	6	3/8	19	350	16.66	310	16.66	400	14.96
1/2	8	1/2	14	350	20.95	275	20.95	400	18.65
3/4	12	3/4	14	280	26.44	210	26.44	400	24.13
1	16	1	11	210	33.24	170	33.24	400	30.3
1-1/4	20	1-1/4	11	175	41.91	140	41.91	250	38.97
1-1/2	24	1-1/2	11	105	47.8	105	47.8	250	44.86
2	32	2	11	105	59.61	80	59.61	250	56.67
2	32	2	11	105	59.61	80	59.61	250	56.67
