AAP Ball Valve


  • For flow to medium gas applications
  • Can also be used for certain chemicals and oils


  • Thread - AS1722.1
  • Max Working Temperature - 60°C
  • Cold Working Pressure - 2500kPa

Material Lists

  • Body - Brass (Nickel Plated)
  • Seat Retainer - Brass (Nickel Plated)
  • Seat - P.T.F.E.
  • Ball - Brass (Chromium-plated)
  • Stem - Brass
  • Gland - Brass
  • Packing - Viton (Double O-Ring)
  • Lever - Stainless Steel (Plastic Coated)
  • Lever Retaining Nut - Brass (Nickel Plated)
  • T-Handle (Optifinal) - DR Brass

About Ball Valves

  • A ball valve is a valve with a spherical ball with an orifice straight through mounted between Teflon seats in either a screwed or flanged body in various materials.
  • When the orifice is in line with both ends of the valve flow will occur.
  • When the valve is closed the orifice is perpendicular to the ends of the valve.
  • The lever/handle will be in line with the orifice position, an indication of the valve position.


  • AIMS SKU A0080397
  • Brand AAP
  • Model Number VBBDMF20LTH
  • Type Ball Valve
  • Height of handle from Valve (H) 64
  • Fitting Connectiom Male - Female
  • Fitting Material Finish Brass
  • Valve Length (l) 66.5
  • Certification/Approval Watermark
  • Pipe Size (mm) 20
  • Valve Handle Length (W) 58
  • Thread Length (A) 18
  • Approx. Kg/pc 0.5
  • Pipe Size (inch) 3/4
SKU: A0080397

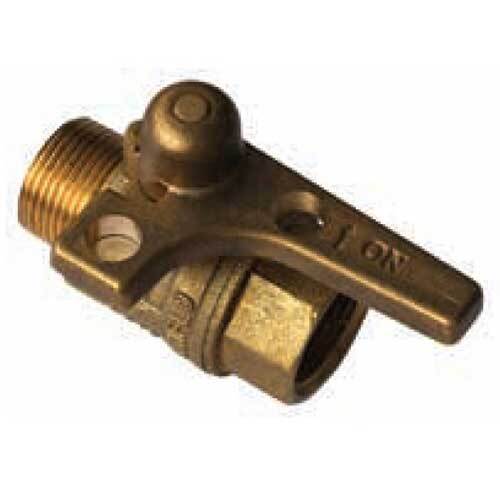

AAP 3/4" DR Ball Valve M/F Brass Locking T-Handle, Watermark VBBDMF20LTH

AAP Ball Valve

RRP $69.45
SAVE $34.72 (50%)
