Description

AAP Brass Ball Valve Short Thread F/F SS Lever

  • For flow to medium gas applications. Can also be used forificertain chemicals and oils



Specifications
Thread AS1722.1
Max Working Temperature 60°C
Cold Working Pressure 2500kPa




MATERIAL LISTS

PART

MATERIAL

Body

Brass (Nickel Plated)

Seat Retainer

Brass (Nickel Plated)

Seat

P.T.F.E.

Ball

Brass (Chromium plated)

Stem

Brass

Gland

Brass

Packing

Viton (Double O-Ring)

Lever

Stainless Steel (Plastic Coated)

Lever Retaining Nut

Brass (Nickel Plated)
T-Handle (Optional) DR Brass



About Ball Valves:

  • A ball valve is a valve with a spherical ball with an orifice straight through mounted between teflon seats in either a screwed or flanged body in various materials.
  • When the orifice is in line with both ends of the valve flow will occur.
  • When the valve is closed the orifice is perpendicular to the ends of the valve.
  • The lever/handle will be in line with the orificeposition, an indication of the valve position.
SKU: A0080318

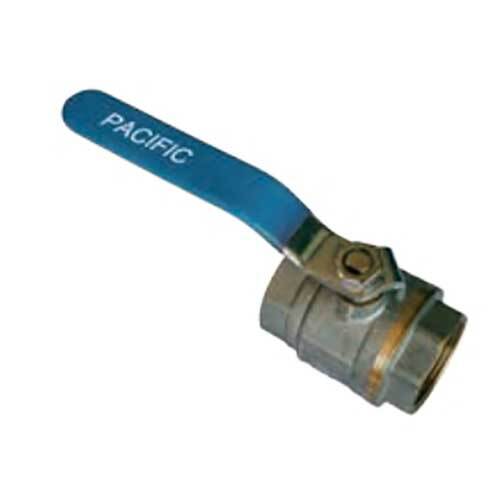

AAP 3/4" Brass Ball Valve Short Thread Female/Female SS Lever VB20

AAP Brass Ball Valve

$8.01

How it works.

Make 4 payments of $2.00 over 8 weeks and get it now!


Buy now, pay later.

Choose a different size/variant

Specifications

  • AIMS SKU A0080318
  • Brand AAP
  • Model Number VB20
  • Pipe Size (inch) 3/4

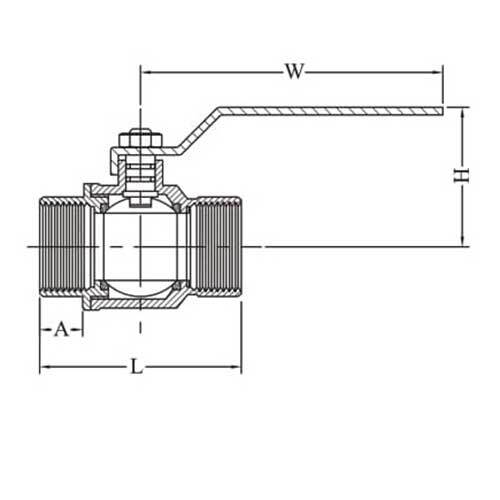

  • Height of handle from Valve (H) 48.5
  • Approx. Kg/pc 0.22
  • Valve Length (l) 52.5
  • Pipe Size (mm) 20
  • Valve Handle Length (W) 94
  • Thread Length (A) 12
  • Type Brass Ball Valve - Short
  • Lever Finish Stainless Steel
  • Fitting Material Finish Brass
  • Fitting Connectiom Female - Female
