Description

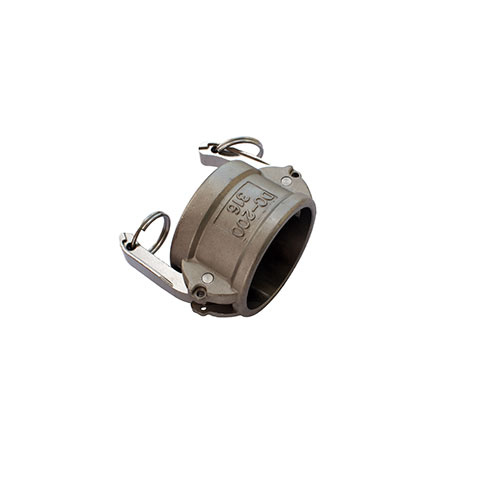

AAP Stainless Camlock Coupler Type-DC Dust Cap

Specifications and Typical of Applications in 316 Stainless Steel

  • Sand Cast Stainless Steel.
  • Fully weldable.
  • Food Industry, Offshore, Chemical Industry.

About Camlock

  • Camlocks are also known as Cam and Groove Fittings
  • The AAP Industries flange of Camlock is manufactured to interchange with all products produced to Mil-Spec A-A 59326.
  • Size 1/2" (15mm) and 8" (200mm) fittings are not covered by Mil-Spec A-A 59326, these sizes are to manufactures specification only.
  • Used were quick, convenient connection and disconnection of piping and hose are required.
  • Industries - irrigation, Pumping, Hose Distributors, Bulk Tankers, Water Carriers, General Industry.
  • Medium - Water, Oil, powders, some Hydrocarbons, and Chemicals (check compatibility charts).
  • Threads - The threads are cut according to ISO 228.
  • Maximum Temperature - NBR (Buna) Gasket 100 degrees Celcius.
  • Spare Parts - AAP has available a flange of spare parts to suit the camlocks, such as Brass Handles (code CBH…), Handle Pins (code CP….), and NBR Gaskets (code CGN…).

Specifications

  • AIMS SKU A0077827
  • Brand AAP
  • Model Number CSS50DC
  • Pipe Size (inch) 2

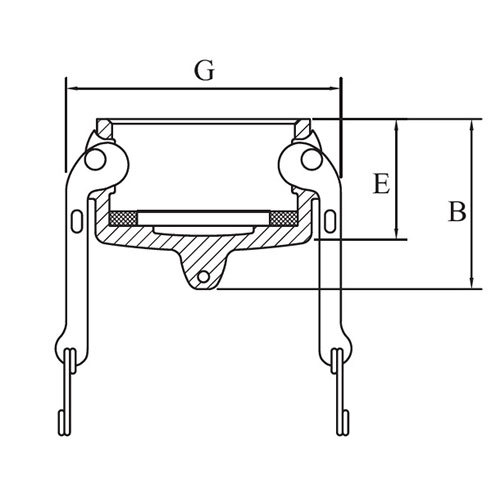

  • Distance Across Closed Cam Arms 96
  • Approx. Kg/pc 0.53
  • Adapter Length ( E ) 54
  • Pipe Size (mm) 50
  • Length (B) 70
  • Type Camlock Coupler
  • Fitting Material Finish Stainless Steel
  • Pipe Fitting Connection Dust Cap
SKU: A0077827

AAP 2" Stainless Camlock Coupler Type-DC Dust Cap CSS50DC

AAP Camlock Coupler Stainless Steel Type DC

$30.78
