Description

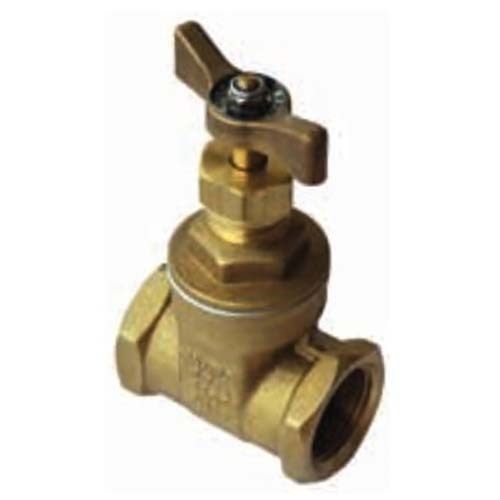

AAP Dr Brass Gate Valve T-Lever

  • The wedge gate valve provides an uninterrupted passage for the flow of fluid. Body ends are inline and the gate is moved between body seats by a spindle, whose axis is at right angles to that of the body ends.
  • It may be either inside screw, in which the actuating thread of the spindle is contained inside the valve and thus in contact with the line fluid, or outside screw, in which the actuating thread of the spindle is exterior to the bonnet.
  • The valve is used extensively where a straight flow is required with minimum pressure drop.
  • It is not recommended for flow regulation and should only be used fully opened or closed.

DR Brass Approved Gate Valve - A59M (T-Lever)

Applications - Potable Water, flow-Pressure Heating, Waterworks, Irrigation, Air Systems and flow-Pressure Steam



Specifications

Thread

AS1722.1

MAX Working Temperature

180°C

Cold Working Pressure

2500kPa



Materials

PART

MATERIAL

Body

DR Brass

Bonnet

DR Brass

Wedge

DR Brass

Stem

DR Brass

Hand Wheel

Ductile Iron

Packing

P.T.F.E.

Tee Handle

DR Brass

SKU: A0080427

AAP 2" DR Brass Gate Valve T-Lever Watermark Approved VBG50TTL

AAP DR Brass Gate Valve T-Lever

$128.89

How it works.

Make 4 payments of $32.22 over 8 weeks and get it now!


Buy now, pay later.

Choose a different size/variant

Specifications

  • AIMS SKU A0080427
  • Brand AAP
  • Model Number VBG50TTL
  • Pipe Size (inch) 2

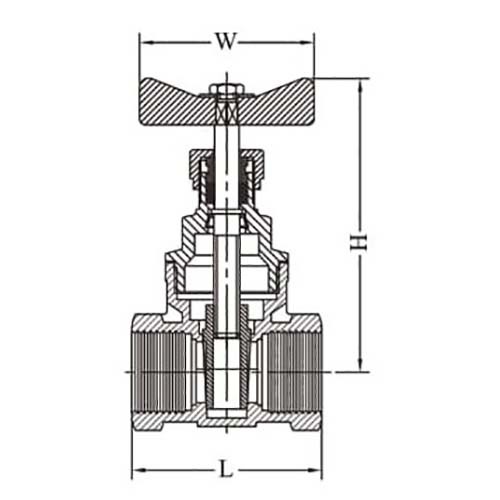

  • Valve Length 98
  • Approx. Kg/pc 2.51
  • Valve Handle Length (W) 104
  • Pipe Size (mm) 50
  • Height of handle from Valve (H) 160
  • Type Dr Brass Gate Valve
  • Certification / Approval Watermark
  • Fitting Material Finish Brass
