Description

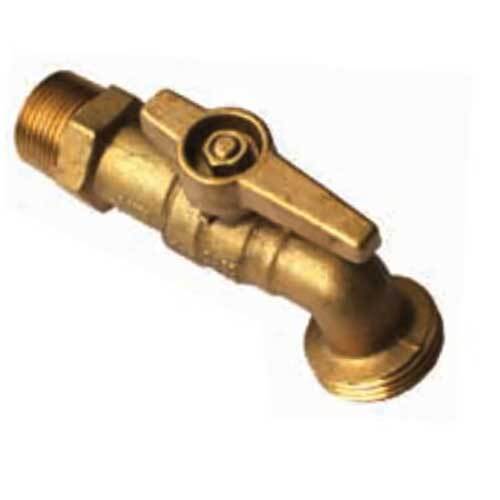

Dr Brass Ball Cock T-Lever

  • Due to the serious threat that dezincification exposes to our water industry, it is essential today that DEZINCIFICATION RESISTANT (DR) valves are used in the appropriate applications. This includes DR valves on all potable water services including water tanks.
  • Offers many configurations of DR maxiflo ball valves, including male/female threaded valves with optional T/Handle and extension spindle.
  • Apart from potable water, it is also approved for the use of low-pressure gas services. It can also be used on oils, chemicals, and hydrocarbons.



Specifications
Thread AS1722.1
Max Working Temperature 150°C (Gas = 60°C)
Cold Working Pressure 2500kPa (Gas = 1050kPa)



Material Lists
PART MATERIAL
Body DR Brass
Seat Retainer DR Brass
Seat P.T.F.E.
Ball DR Brass (Chromium Plated)
Stem DR Brass
Gland DR Brass
Packing Viton (Double O-Ring)
Lever Stainless Steel (Plastic Coated)
Lever Retaining Nut Brass
T-Handle (Optional) DR Brass



About Ball Valves:

  • A ball valve is a valve with a spherical ball with an orifice straight through mounted between teflon seats in either a screwed or flanged body in various materials.
  • When the orifice is in line with both ends of the valve flow will occur.
  • When the valve is closed the orifice is perpendicular to the ends of the valve.
  • The lever/handle will be in line with the orifice position, an indication of the valve position.

Specifications

  • AIMS SKU A0080409
  • Brand AAP
  • Model Number VBCD15
  • Pipe Size (inch) 1/2

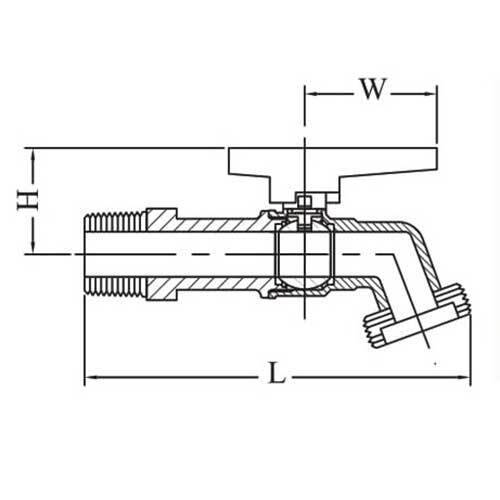

  • Valve Handle Length (W) 32
  • Approx. Kg/pc 0.23
  • Height of handle from Valve (H) 60
  • Pipe Size (mm) 15
  • Valve Length (l) 97
  • Type Brass Ball Cock T-Lever Handle
  • Certification/Approval Watermark
  • Fitting Material Finish DR Brass
SKU: A0080409

AAP 15mm, 1/2" DR Brass Ball Cock T-Lever Watermark VBCD15
