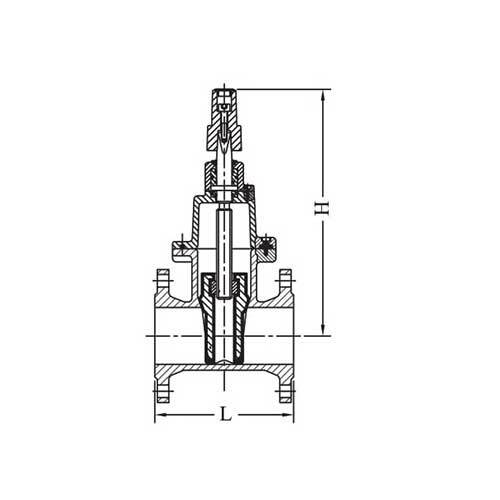

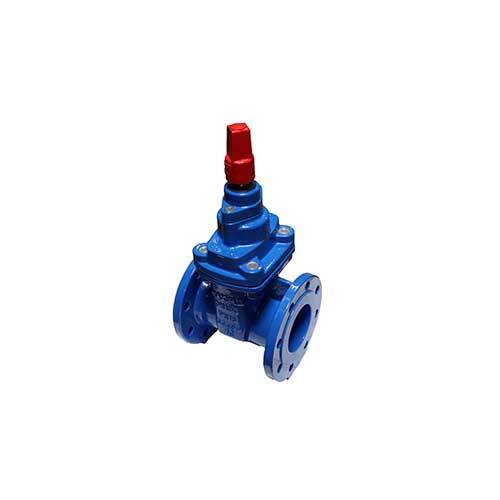

AAP Resilient Gate Valve Clockwise Gear-Op

Materials

• Body - Ductile Iron (Epoxy Resin Coating)
• Bonnet - Ductile Iron (Epoxy Resin Coating)
• Wedge - Ductile Iron (Bonded Rubber)
• Stem - 431 Stainless Steel
• O'Ring - EPDM
• Seal Bushing - EPDM

About Resilient Seat Gate Valves

• Certified to AS/NZS:2638:2011
• AAP Standards Mark License - SMKP20171.4. This license covers DN80-DN600 valves.
• Certified to AS4020 - Suitable for contact with drinking water WSAA Product Appraisal Report 11/26.
• Sydney Water Approval - No. 200808
• Yarra Valley Water Authorisation - Ref. YVW 12/11 City West Water CWW 12/596
• South East Water SEW 12/0117
• Hunter Water Corporation HWC 2012-35/49/1
• The Valves are distinguished by Whitecap for Anti-clockwise and Redcap for Clockwise.
• For buried applications is recommended installation complies with Australian Standard - AS/NZS 2566.2
• N.B DN50 and DN65 are not covered by AS2638.2

Specifications

• Max Working Temperature - 40°C
• Cold Working Pressure - 1600kPa
• Design - AS2638.2
• Flanged Drilling T/C - AS4087
• Fanged Drilling T/E - AS2129
• Socket Ends - AS2280
• Coating Thickness - AS4158

Applications

• Water, sewage, and neutral liquid applications
