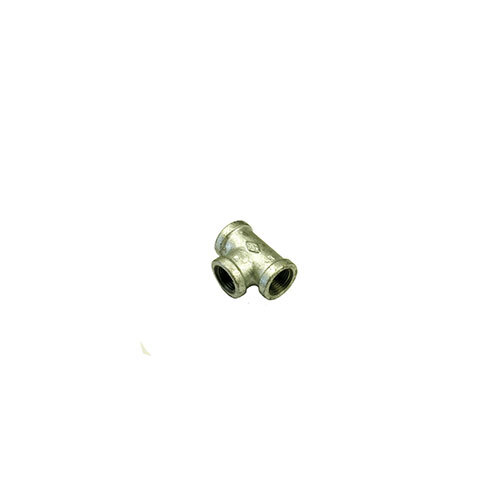

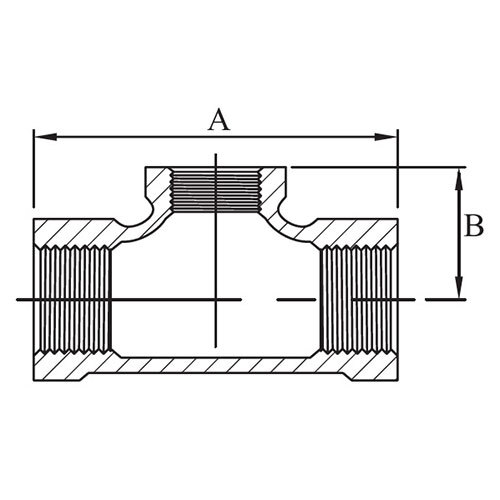

Galvanised Malleable Iron Pipe Fittings

Specifications:

STANDARD AND IDENTIFICATION:

• Standard for production and use EN 10242: 1994

• Fittings made of high-quality blackheart malleable cast iron to ASTM A-197, ASTM A47

THREADS:

• The threads are cut according to AS 1722.1 / ISO 7/1. Parallel internal thread (RP) and tapered external thread (R).

APPLICATION:

• All the fittings are adequate for the supply of water at the recommended maximum working pressure of 1379kPa and gas, steam, and compressed air at the recommended maximum working pressure of 1034 kPa.
• Note: Working pressures may also be limited by relevant pressure piping codes or Industry regulations.

DIMENSIONS:

• All the fittings are manufactured to the speci?cations of standard BS EN 10242, BS 143, BS 1256

INSPECTION:

• All the fittings are inspected for conformity with the speci?cations of standard EN 10242.

MARKING:

• All the fittings, when possible, are marked with a brand and/or with the nominal size Identi?cation.

HOT DIP:

• The fittings are delivered in hot-dip galvanized ?nish, as prescribed by the standard EN 10242.

LEAK TEST:

• Applying the standard EN 10242 each individual ?tting is subjected to a pressure test with a min.
• The hydrostatic pressure of 2068 kPa, which is equivalent to a pneumatic pressure of min. 500 kPa, without showing any sign of leakage or abnormality.



BRITISH STANDARD THREADS
All measurements in mm
NOMINAL BORE OF PIPE		APPROX. OUTSIDE DIAMETER	NUMBER OF THREADS PER INCH	PITCH	DEPTH OF THREADS	DIAMETER AT GAUGE PLANE	LENGTH OF USEFUL THREAD
IMPERIAL	METRIC	A		P	h	B	E
1/8	6	10.16	28	0.907	0.581	9.72	6.5
1/4	8	13.66	19	1.337	0.856	13.15	9.7
3/8	10	17.17	19	1.337	0.856	16.66	10.1
1/2	15	21.51	14	1.814	1.162	20.95	13.2
3/4	20	27	14	1.814	1.162	26.44	14.5
1	25	33.93	11	2.309	1.479	33.24	16.8
1-1/4	32	42.59	11	2.309	1.479	41.91	19.1
1-1/2	40	48.48	11	2.309	1.479	47.8	19.1
2	50	60.47	11	2.309	1.479	59.61	23.4
2/1/2	65	76.09	11	2.309	1.479	75.18	26.7
3	80	88.87	11	2.309	1.479	87.88	29.8
4	100	114.14	11	2.309	1.479	113.03	35.8
5	125	139.65	11	2.309	1.479	138.43	40.1
6	150	165.12	11	2.309	1.479	163.83	40.1
