Descriptions

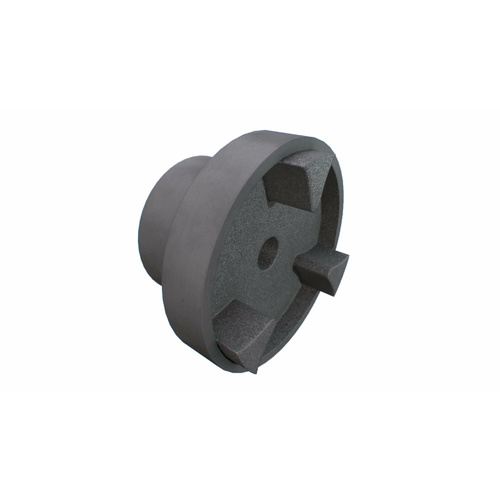

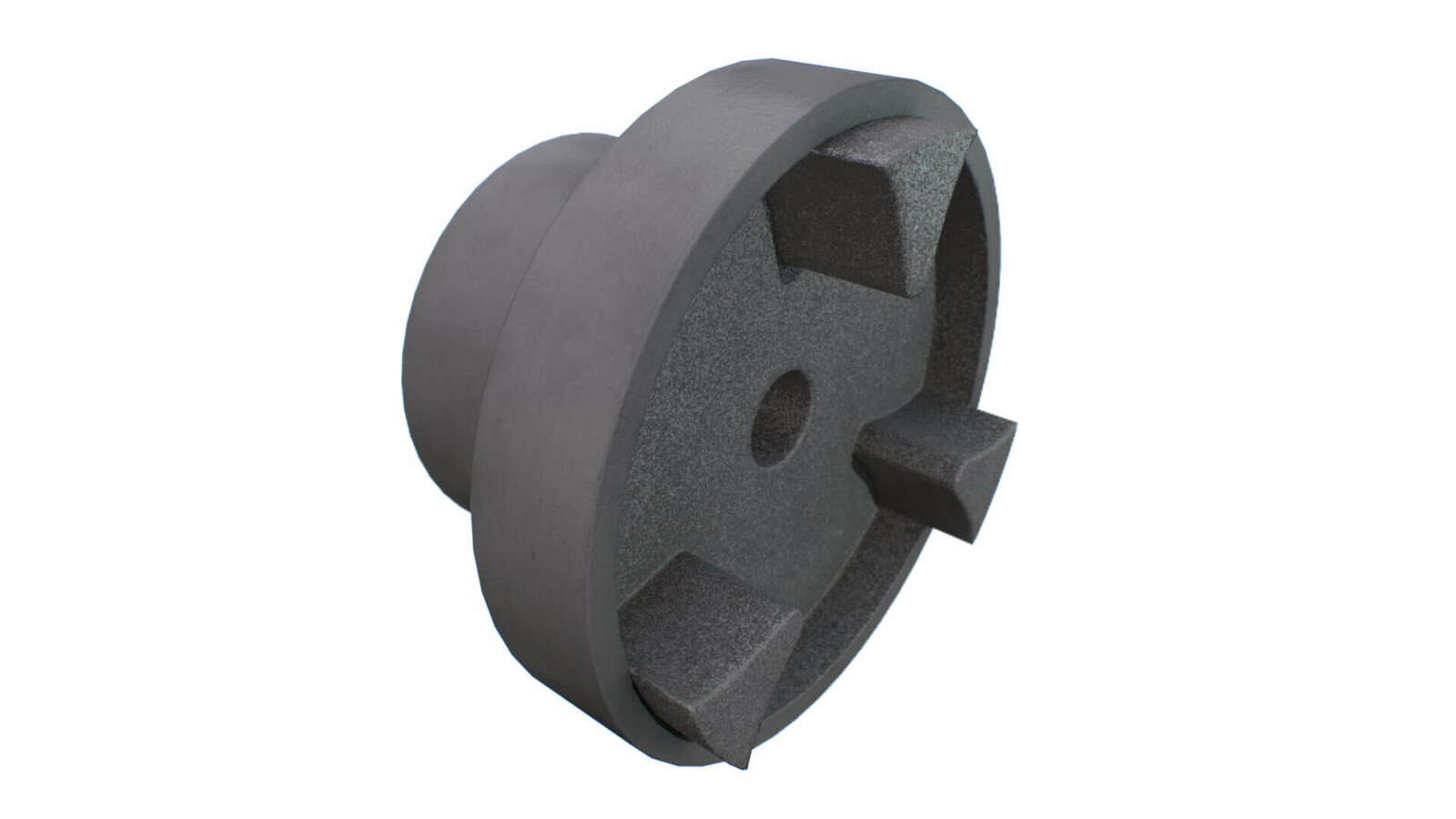

• HRC Half-Coupling Flange Type-B
• B-Type coupling is supplied finished bored to H7 tolerance with standard keyway and setscrew
• Product item is single flange (half-coupling)
• Can be paired with H-Type and F-Type Flanges (i.e. BB, BH, BF coupling assemblies)

Construction

• Material: Grey Cast Iron
• Angular Misalignment Capacity: 1 degree
• Refer to product data sheet for other technical information

Advantages

• Coupling assembly is designed for general purpose and uses an element in compression
• These are designed for use particularly on machinery driven from standard IEC electric motors
• Fully machined outside diameters allow alignment by simple edge methods
• Shaft connection is “fail safe” due to interacting jaw/dog design
• Installation is quick and easy without special tools, only an allen key is required
• Maintenance is virtually eliminated, and no lubricant is required

Features (HRC Coupling in Finished Bore)

• It is recommended that keys are fitted for applications where load fluctuation is expected
