Description

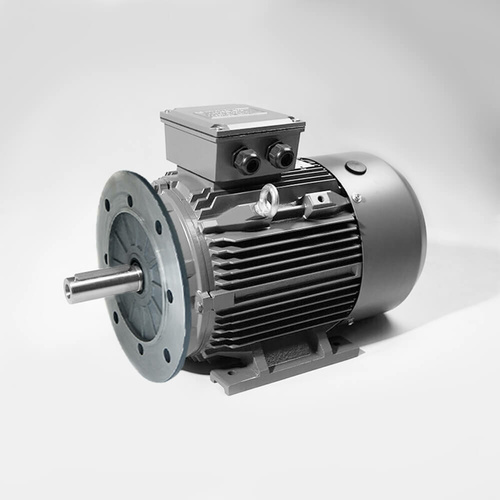

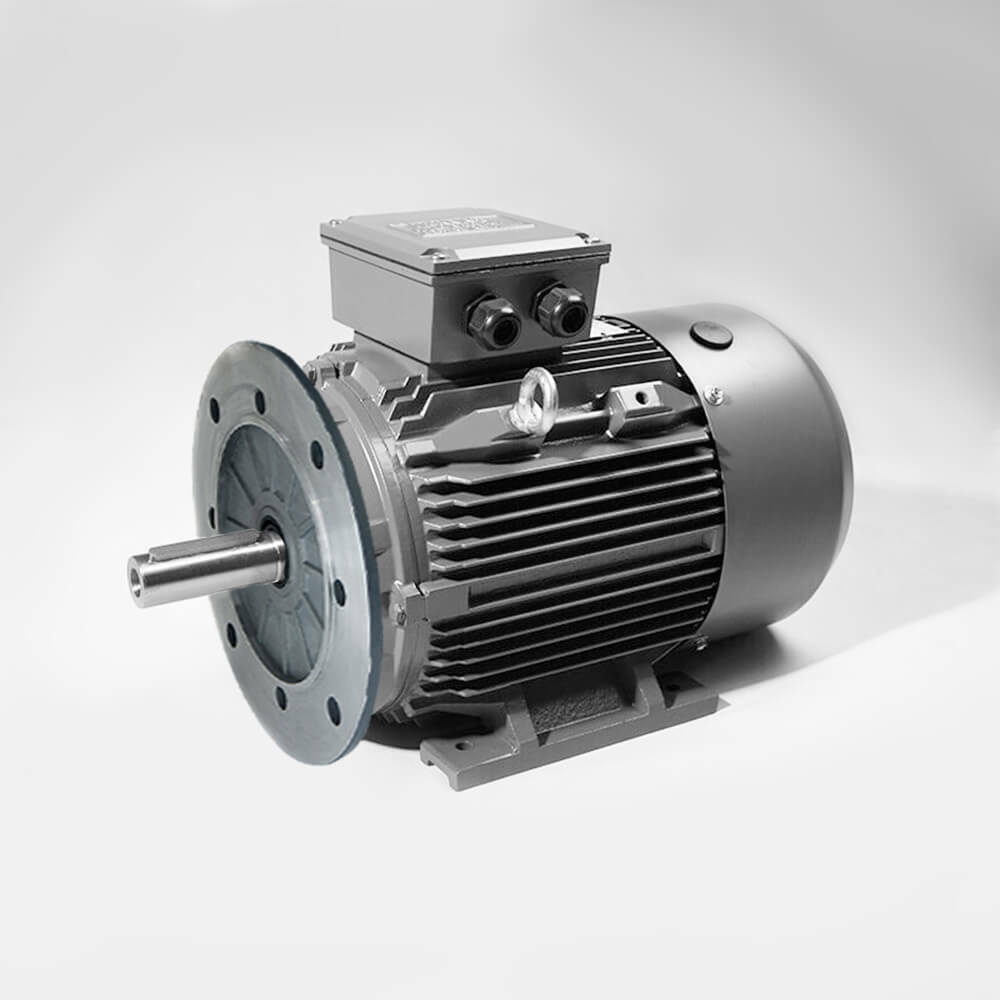

TechTop’s TCI cast iron series motors combine superior electrical characteristics, high quality design and the robust strength of cast iron. This AC induction motor is ideal for all industrial applications.

A unique feature of the TCI series electric motor is its multi-mount design up to 280 frame, allowing for the motor feet to be repositioned to either side to produce a side mounted terminal box.

Minimum Energy Performance Standards (MEPS) Compliant

Specifications

  • AIMS SKU A0099285
  • Brand TechTop
  • Model Number TC2A0756TCI
  • Poles 2
  • Mounting Position B3,B14A
  • Base RPM 2880
  • Shaft Diameter 19 mm
  • Mounting Type Foot & Flange Mounted
  • IEC Frame Size 80 A
  • Group Code Techtop-TCI-0.75kw
  • Type Three Phase
  • Material Cast Iron
  • Nominal Rated Input Voltage 415 V
  • Rated Load (kW) 0.75
  • Rated Load (HP) 1
  • AC Phase Three Phase
  • Series Techtop TCI
  • Current Type AC
SKU: A0099285

TechTop 0.75kW 1 HP Motor 415V 3 Phase 2 Pole, 2880 RPM, Foot & Flange TC2A0756TCI

415V Three Phase Cast Iron Motor (TC2A0756TCI)

$201.97
